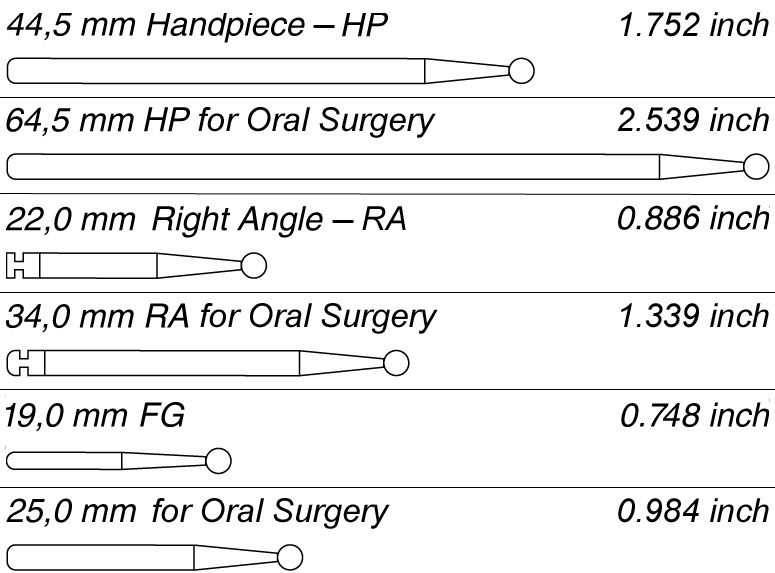

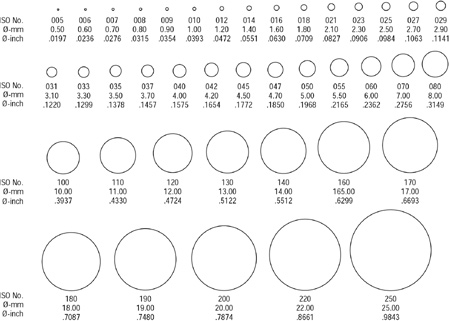

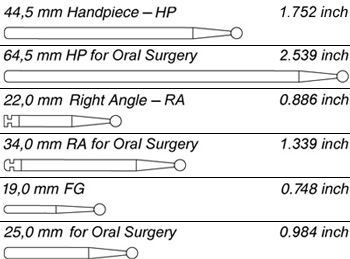

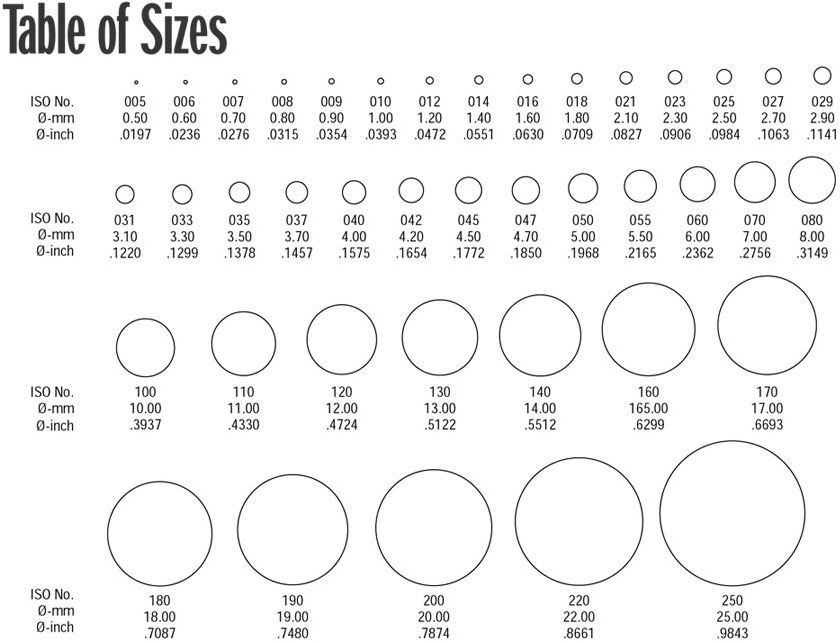

below are our Table of Sizes, Shank
Types & Lengths, and MM & Inch
Equivalents. Also see our Safety
Recommendations, Hygienic Recommendations,
and Recommended Speeds page.
Please take a look at all of this information carefully before
placing an order.
High performance Carbide of the best grade.
Workmanship: Special process assures a strong bond
between Carbide and steel, not affected by temperature. Exact
concentricity. Unusual durability, resistant to wear, even
under unfavorable conditions. Blades designed for the intended
use in a constructive manner, especially for the particular
diameter and size.
Application: Leverage and planing motion must be avoided
to prevent breakage. Use only with true running handpieces
and chucks. Instruments with heavier shaft will afford greater
safety, particularly heavy duty laboratory cutters and trimmers.
The maximum working presure increases according to the diameter
from 0,3N5N. FG Burs with long shank not recommended
for use above 120,000 rpm.
