Busch Carbide Burs - Round


Ordering Information & Recommendations

Safety and Hygiene Recommendations for Rotary Instruments

Busch - Figure 1AU

Carbide Cutters


1AU
This round Busch carbide bur is a power cutter for gold alloys.

FIG 1AU POWERCUT CARBIDE BUR

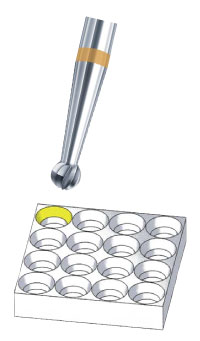

Holes drilled with the twist drill 4205S are enlarged as required with larger round carbide burs 1AU. This creates a secure mount for the rondiste of the gem to be set. Cutting in difficult to reach corner areas and also a fine refinishing can be done with the small diameter of 0.4 mm.

State-of-the-art manufacturing techniques give these round burs a powerful blade geometry of the kind normal­ly only found on steel tools.

The special material properties of the carbide metal guarantee a remarkably long service life compared with the familiar round steel burs when producing jewellery made on gold. In addition to this, the new round bur permits cost-efficient working on widely used jewellery materials as platinum, titanium and even steel.

Recommend speed: 2,000 - 10,000 rpm

Pave Settings - 1AU.pdf




ITEM ORDER NUMBER:
   HP
Size
ISO 500 ... ... ...
D1
21AU03
003
0,30 mm
21AU04
004
0,40 mm
21AU05
005
0,50 mm
21AU06
006
0,60 mm
21AU07
007
0,70 mm
21AU08
008
0,80 mm
21AU09
009
0,90 mm
21AU10
010
1,00 mm
21AU11
011
1,10 mm
21AU12
012
1,20 mm
21AU13
013
1,30 mm
21AU14
014
1,40 mm
21AU15
015
1,50 mm
21AU16
016
1,60 mm
21AU17
017
1,70 mm
21AU18
018
1,80 mm
21AU19
019
1,90 mm
21AU20
020
2,00 mm
21AU21
021
2,10 mm
21AU22
022
2,20 mm
21AU23
023
2,30 mm
21AU25
025
2,50 mm
21AU27
027
2,70 mm
21AU29
029
2,90 mm
21AU30
030
3,00 mm
21AU31
031
3,10 mm
