Busch Steel Burs - Cup - Concave Cup


Ordering Information & Recommendations

Safety and Hygiene Recommendations for Rotary Instruments

Busch - Figure 411T

Twincut


411T

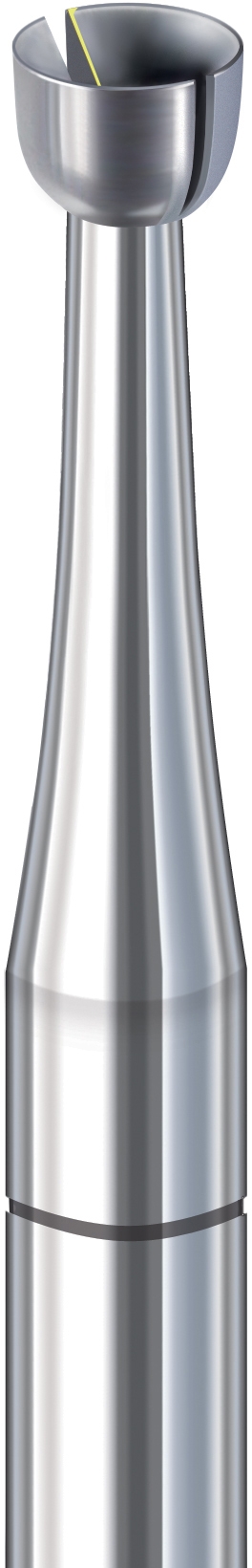

This concave shape Busch steel cutter bur has twincut blade geometry.

FIG 411T TWINCUT CUP BUR

Also available as a set from size 008 up to 020 (without 019).

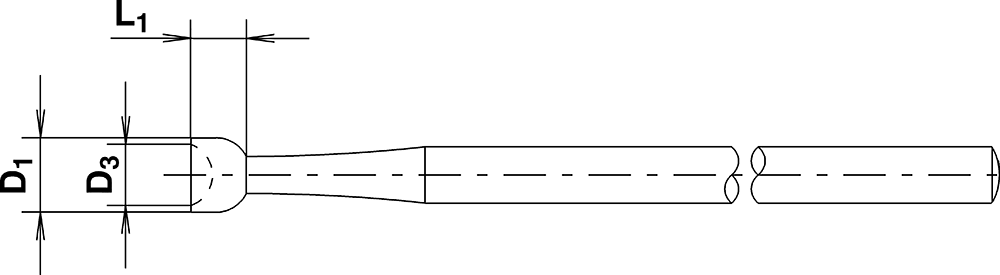

Illustration of the 411T Twin Cut








ITEM ORDER NUMBER:
Size
ISO 310 ... ... ...
D1
D3
L
1411TS12
008-020
0,80-2,00 mm
1411T08
008
0,80 mm
0,65 mm
0,65 mm
1411T09
009
0,90 mm
0,75 mm
0,70 mm
1411T10
010
1,00 mm
0,85 mm
0,75 mm
1411T11
011
1,10 mm
0,95 mm
0,78 mm
1411T12
012
1,20 mm
1,04 mm
0,90 mm
1411T13
013
1,30 mm
1,14 mm
0,98 mm
1411T14
014
1,40 mm
1,24 mm
1,05 mm
1411T15
015
1,50 mm
1,34 mm
1,10 mm
1411T16
016
1,60 mm
1,43 mm
1,20 mm
1411T17
017
1,70 mm
1,53 mm
1,28 mm
1411T18
018
1,80 mm
1,62 mm
1,35 mm
1411T19
019
1,90 mm
1,72 mm
1,42 mm
1411T20
020
2,00 mm
1,81 mm
1,48 mm
1411T21
021
2,10 mm
1,91 mm
1,55 mm
1411T22
022
2,20 mm
2,01 mm
1,63 mm
1411T23
023
2,30 mm
2,10 mm
1,72 mm


Busch® is a registered trademark of Pfingst & Company
