Busch Steel Burs - Bearing


Ordering Information and Recommendations

Safety and Hygiene Recommendations for Rotary Instruments

Busch - Figure 446

Steel Cutters


446

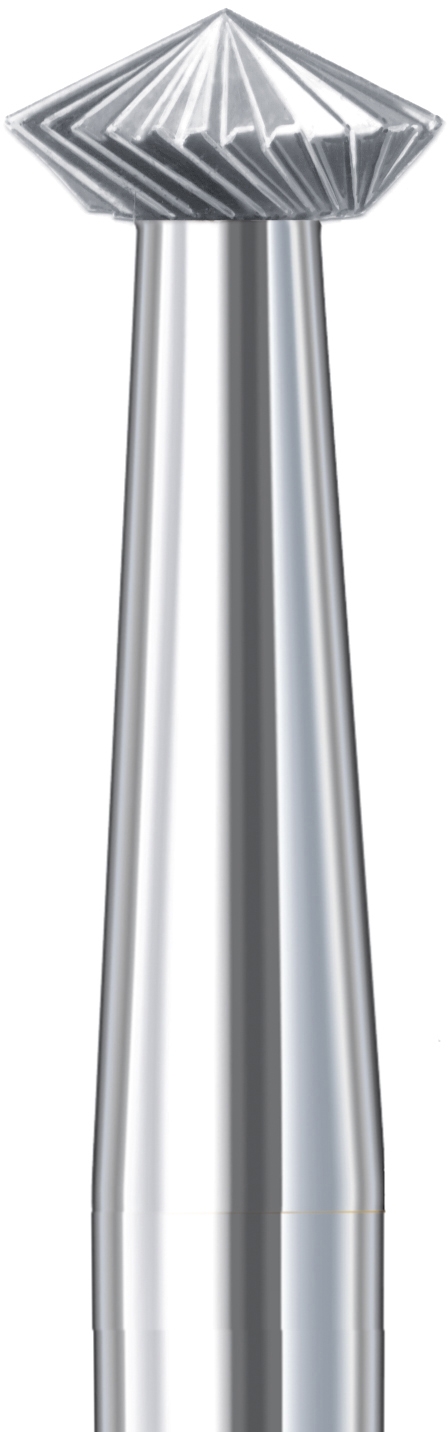

This is a flat, Busch bearing cutter.

FIG 446 STEEL BURS 70 DEG




ITEM ORDER NUMBER:
Size
ISO 310 ... ... ...
D1
L
α
144609
009
0,90 mm
0,39 mm
70°
144610
010
1,00 mm
0,43 mm
70°
144611
011
1,10 mm
70°
144612
012
1,20 mm
0,51 mm
70°
144613
013
1,30 mm
70°
144614
014
1,40 mm
0,59 mm
70°
144615
015
1,50 mm
70°
144616
016
1,60 mm
0,68 mm
70°
144617
017
1,70 mm
70°
144618
018
1,80 mm
0,76 mm
70°
144619
019
1,90 mm
70°
144620
020
2,00 mm
70°
144621
021
2,10 mm
0,89 mm
70°
144622
022
2,20 mm
70°
144623
023
2,30 mm
0,97 mm
70°
144625
025
2,50 mm
1,05 mm
70°
144627
027
2,70 mm
1,13 mm
70°
144629
029
2,90 mm
1,22 mm
70°
144631
031
3,10 mm
1,27 mm
70°
144633
033
3,30 mm
1,36 mm
70°
144635
035
3,50 mm
1,47 mm
70°
144637
037
3,70 mm
1,57 mm
70°
144640
040
4,00 mm
1,74 mm
70°
144642
042
4,20 mm
1,84 mm
70°
144645
045
4,50 mm
2,01 mm
70°
144647
047
4,70 mm
2,11 mm
70°
144650
050
5,00 mm
2,27 mm
70°
